Which material is commonly used for the housing of a stator?
The selection of appropriate materials for Rongbao.com/low-pressure-casting/stator-housing">stator housings represents a critical engineering decision that significantly impacts the performance, efficiency, and longevity of electric motors and generators. As these components must simultaneously provide structural support, thermal management, and protection for internal elements, their material composition directly influences operational characteristics across diverse applications. In sectors ranging from automotive and aerospace to medical equipment and industrial machinery, engineers must carefully balance multiple factors when selecting their materials, including thermal conductivity, strength-to-weight ratio, manufacturability, and cost-effectiveness.
Aluminum Alloys
Aluminum alloys represent the predominant material choice for modern stator housings across numerous industries, with specific formulations engineered to meet particular performance requirements. These lightweight yet robust materials offer a compelling combination of physical and mechanical properties that address the multifaceted demands placed on stator housings.

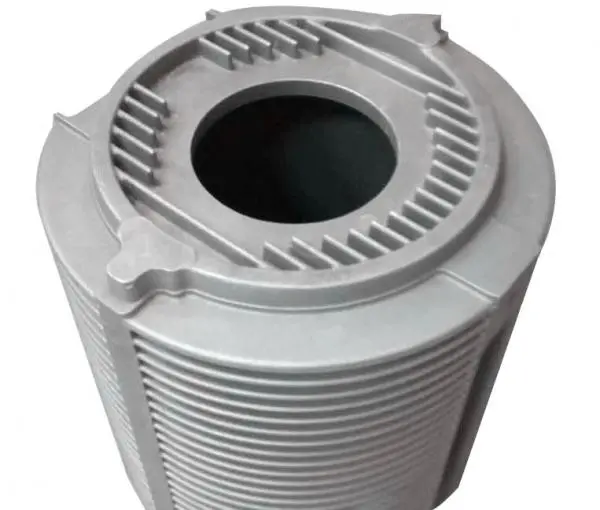

Among aluminum alloys, A356 (AlSi7Mg0.3) has emerged as an industry standard for high-performance stator housings. This alloy contains approximately 7% silicon and 0.3% magnesium, creating an optimal balance of castability, strength, and thermal characteristics. The silicon content enhances fluidity during casting processes, facilitating the production of complex geometries with thin walls and intricate cooling features. Meanwhile, the magnesium content enables precipitation hardening through heat treatment, significantly improving mechanical properties compared to non-heat-treatable alloys.
The mechanical properties of properly heat-treated A356 aluminum make it particularly suitable for stator housing applications. After T6 heat treatment (solution treatment followed by artificial aging), this alloy typically exhibits a yield strength of approximately 230 MPa and tensile strength of 290 MPa, providing substantial load-bearing capacity while maintaining good ductility with elongation values of 6-8%. These characteristics ensure the housing can withstand operational forces while maintaining dimensional stability.
Thermal conductivity represents another critical advantage of A356 aluminum. With a thermal conductivity value of approximately 151 W/m·K, this material efficiently transfers heat from the stator windings to external cooling systems or ambient environment. This property becomes particularly important in high-power-density applications where effective heat dissipation directly impacts performance capabilities and component longevity.
The manufacturing approach significantly influences the performance characteristics. Low pressure die casting has emerged as the preferred production method for premium stator housings, offering several advantages over alternative processes. This technique utilizes controlled pneumatic pressure to drive molten aluminum upward into a heated die cavity, creating laminar metal flow that minimizes turbulence and associated defects such as oxide inclusions and gas porosity.
For stator housings weighing up to 35KG, low pressure die casting provides exceptional dimensional accuracy and surface finish quality that reduces subsequent machining requirements. The controlled solidification pattern inherent to this process promotes directional crystallization that enhances mechanical properties compared to conventional casting methods. Additionally, the process enables the integration of complex cooling channels and mounting features directly into the casting, reducing assembly complexity and potential failure points.
Why Does Aluminum (Like A356) Dominate?
The widespread adoption of aluminum alloys, particularly A356, for stator housing applications stems from a compelling combination of performance characteristics, manufacturing advantages, and economic factors that collectively address the diverse requirements of modern electrical systems. Understanding these factors provides insight into material selection criteria for stator housing applications across various industries.
The exceptional strength-to-weight ratio of aluminum alloys represents perhaps their most significant advantage for stator housing applications. With a density approximately one-third that of steel (2.68 g/cm³ vs. 7.85 g/cm³), aluminum housings offer substantial weight savings without compromising structural integrity. This weight reduction becomes particularly valuable in transportation applications such as automotive and aerospace systems, where every gram impacts energy efficiency and overall system performance. In electric vehicles, for instance, lighter stator housings directly contribute to extended range and reduced energy consumption.
Manufacturing considerations further reinforce aluminum's position as the preferred material for stator housings. The excellent castability of alloys like A356 enables the production of complex geometries with integrated cooling channels, mounting features, and structural elements that would be difficult or prohibitively expensive to create through other manufacturing methods. When produced through low pressure die casting, these components exhibit minimal porosity, excellent dimensional accuracy, and superior surface finish compared to alternative casting processes.
Corrosion resistance represents another significant advantage of aluminum stator housings. With proper alloy selection and surface treatments, aluminum components offer excellent resistance to atmospheric corrosion without requiring extensive protective measures. This characteristic proves particularly valuable in applications exposed to varying environmental conditions or those requiring regular cleaning with potentially aggressive agents, such as medical equipment.
Steel (Sheet or Molded)
Despite aluminum's predominance in modern stator housing applications, steel continues to serve important roles in specific contexts where its unique properties address particular requirements. Understanding the characteristics, applications, and manufacturing approaches for steel stator housings provides a more complete perspective on material selection considerations.
Steel stator housings typically fall into two primary categories based on manufacturing methodology: sheet steel laminations and cast steel components. Sheet steel constructions utilize multiple layers of electrical steel (typically silicon steel) assembled into a cylindrical or prismatic structure through welding, adhesive bonding, or mechanical fastening. This approach offers excellent magnetic properties and is commonly employed in applications where electromagnetic shielding or flux guidance functions are prioritized. Cast steel housings, conversely, provide superior structural rigidity and are typically used in heavy-duty industrial applications subject to extreme mechanical stresses.
Conclusion
At Rongbao Enterprise, we specialize in the production of premium A356 aluminum stator housings through our advanced low pressure die casting process. Our manufacturing capabilities accommodate components weighing up to 35KG while maintaining precise dimensional control and excellent surface finish quality. All our products comply with rigorous ASTM and AISI standards, ensuring consistent performance and reliability across applications. Our comprehensive certifications, including ISO9001:205, ISO14001 environmental management, and ISO45001 occupational health and safety management systems, reflect our commitment to quality, sustainability, and workplace safety.
For engineering and procurement professionals seeking optimal solutions for specific applications, we offer both OEM and ODM services with extensive customization capabilities. Our engineering team can work with your specifications to develop tailored solutions that address your unique performance requirements while optimizing manufacturing efficiency and cost-effectiveness. For more information about our products manufacturing capabilities or to discuss your specific project requirements, please contact us at selinazhou@xianrongbao.com or steve.zhou@263.net.
References
- ASM Handbook, Volume 2: Properties and Selection of Nonferrous Alloys
- IEEE Transactions on Industry Applications: "Materials Selection for Electric Motor Housings"
- ASTM B108/B108M - Standard Specification for Aluminum-Alloy Permanent Mold Castings
- Journal of Materials Processing Technology: "Low Pressure Die Casting of Aluminum Components"
- International Journal of Metalcasting: "Thermal Properties of Cast Aluminum Alloys"
