How to design stator housings?

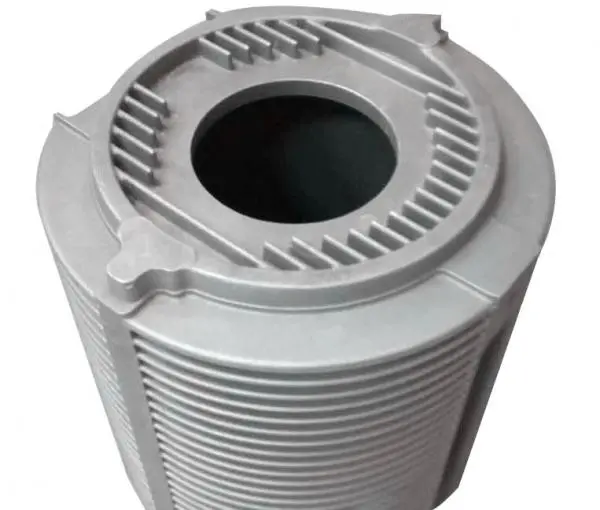

TheRongbao.com/low-pressure-casting/stator-housing"> stator housing is a critical component in various electrical systems, serving as the protective enclosure for the stator assembly in electric motors, generators, and other rotating machinery. A well-designed product not only provides mechanical protection but also contributes significantly to overall system performance, efficiency, and longevity.

The design process requires careful consideration of mechanical, thermal, and electromagnetic properties to ensure optimal performance. Whether for automotive applications, aerospace systems, medical equipment, or industrial machinery, the principles of design remain consistent while adapting to specific operational requirements and environmental conditions.

Rigid Structure

The structural rigidity of a stator housing is paramount to maintaining proper alignment of internal components during operation. A rigid structure minimizes vibration, reduces noise, and prevents deformation that could compromise the critical air gap between stator and rotor components. Several factors influence the structural design of an effective stator housing:

Material Selection: The choice of material significantly impacts structural integrity. Premium materials like A356 aluminum alloy offer an excellent balance of strength, weight, and thermal properties. This aluminum-silicon alloy provides superior castability while maintaining good mechanical properties, making it an ideal choice for stator housings manufactured using low pressure die casting processes.

Wall Thickness Optimization: The walls of a stator housing must be thick enough to provide structural support but not excessively thick, which would increase weight and material costs. Finite element analysis helps identify optimal wall thickness distributions that maintain rigidity while minimizing material usage. Critical areas, such as mounting interfaces and regions subjected to higher mechanical stress, typically require greater wall thickness.

Reinforcement Features: Strategic reinforcement features such as ribs, gussets, and bosses enhance structural rigidity without significantly increasing overall weight. These features are particularly important in larger housings, such as those weighing around 35KG, where material distribution becomes more critical. The low pressure die casting process excels in creating these complex reinforcement patterns with excellent dimensional accuracy.

Dimensional Stability: Stator housings must maintain their dimensional specifications under various operating conditions, including thermal cycling and mechanical loading. Design considerations should account for material thermal expansion properties and potential creep under prolonged stress. Adherence to international standards such as ASTM and AISI ensures consistency and compatibility across different applications.

Cooling Features

Effective thermal management is essential for optimal motor performance and longevity. Stator housings play a critical role in heat dissipation, and their design must incorporate features that facilitate efficient cooling of the entire assembly.

External Cooling Fins: The exterior surface of stator housings often incorporates cooling fins to increase the surface area available for heat dissipation. The size, spacing, and orientation of these fins significantly impact cooling efficiency. Low pressure die casting enables the creation of complex fin geometries with consistent quality, ensuring optimal thermal performance. The fin design must balance heat transfer requirements with manufacturing constraints and aesthetic considerations.

Internal Cooling Channels: More sophisticated stator housing designs incorporate internal cooling channels through which coolant can circulate. These channels must be strategically positioned to target hotspots while maintaining structural integrity. The low pressure die casting process excels in creating these internal passages with minimal porosity, which is critical for preventing coolant leakage.

Material Thermal Properties: Beyond mechanical strength, the thermal conductivity of housing materials is crucial for effective heat transfer. A356 aluminum alloy offers excellent thermal conductivity (approximately 151 W/m·K), facilitating efficient heat dissipation from the stator winding to the external environment. This property makes it particularly suitable for applications with high power density requirements.

Surface Treatment Considerations: Surface treatments and coatings can enhance the thermal performance of stator housings. For instance, anodizing can improve corrosion resistance while maintaining good thermal conductivity. Some specialized coatings can increase emissivity, improving radiative heat transfer, particularly in applications where convective cooling is limited.

Integration with Cooling Systems: Modern stator housing designs often integrate directly with liquid cooling systems. This integration requires careful consideration of sealing interfaces, fluid dynamics, and material compatibility with coolants. The precision offered by low pressure die casting ensures reliable sealing surfaces, minimizing the risk of coolant leakage that could compromise electrical components.

Mounting Points

The mounting interface between the stator housing and the overall system framework is critical for maintaining alignment, transferring heat, and isolating vibration. Proper design of mounting points ensures reliable operation and simplifies assembly processes.

Precision Mounting Surfaces: Mounting faces require high dimensional accuracy and surface finish to ensure proper alignment of the motor assembly. Low pressure die casting allows for the creation of precise mounting surfaces that require minimal post-casting machining, reducing manufacturing costs while maintaining tight tolerances. These surfaces must remain flat and stable throughout the operational temperature range.

Fastening System Design: The selection and placement of fastening points significantly impact assembly ease and operational reliability. Threaded inserts, through-holes, and bosses must be designed with appropriate strength and accessibility considerations. The number and distribution of fastening points should balance secure attachment with ease of assembly and maintenance access.

Vibration Isolation: In many applications, particularly in automotive and precision equipment contexts, vibration isolation is critical. Mounting points may incorporate features for elastomeric isolators or other damping mechanisms. The design must account for the mechanical properties of these isolators while ensuring they don't compromise alignment or thermal transfer requirements.

Integration with Surrounding Systems: Mounting points often serve multiple functions beyond mechanical attachment. They may incorporate electrical grounding connections, coolant interfaces, or sensor mounting provisions. A comprehensive approach to mounting point design considers all these requirements simultaneously, minimizing component count and assembly complexity.

Customization Flexibility: Different applications require different mounting configurations. Custom-designed mounting points tailored to specific installation requirements can significantly simplify system integration. The low pressure die casting process offers excellent flexibility for customization, allowing for specialized mounting features without significant tooling modifications.

Conclusion

Effective stator housing design requires a holistic approach that balances structural rigidity, thermal management, and mounting considerations. The low pressure die casting process offers significant advantages for manufacturing complex parts, particularly when using premium materials like A356 aluminum alloy. This manufacturing method delivers excellent dimensional accuracy, good mechanical properties, and the ability to create intricate cooling features and reinforcement structures.

For applications requiring high-performance products with excellent quality control and customization options, Rongbao Enterprise offers comprehensive solutions backed by ISO9001:2015 certification, ISO14001 environmental management, and ISO45001 occupational health and safety management systems. Our engineering team specializes in customized parts designs that meet specific application requirements while optimizing for manufacturability and cost-effectiveness.

For more information about our casting parts manufacturing capabilities or to discuss your specific requirements, please contact our technical team at selinazhou@xianrongbao.com or steve.zhou@263.net.

References

• ASTM B557: Standard Test Methods for Tension Testing Wrought and Cast Aluminum and Magnesium-Alloy Products
• AISI Standards for Non-ferrous Metals and Alloys
• IEEE 112: Standard Test Procedure for Polyphase Induction Motors and Generators
• ISO 9001:2015 Quality Management Systems
