What is the difference between cartridge and filter element?

In industrial applications, filtration systems play a crucial role in maintaining the quality and performance of various fluids and gases. Two terms frequently encountered in filtration technology are "cartridge" and "Rongbao.com/sand-casting/casting-filter-element">filter element." While these terms are sometimes used interchangeably, understanding their distinctions is essential for selecting the appropriate filtration solution for specific industrial needs, particularly in sectors like automotive, aerospace, medical equipment manufacturing, and electrical/electronic industries.

Definition & Scope

A filter element refers to the actual filtering medium or component that physically removes contaminants from fluids or gases. It is the fundamental part responsible for the separation of particles, impurities, or unwanted substances from the medium being filtered. Filter elements come in various materials and designs depending on their specific application, including casting filter elements, which are often produced through processes like sand casting.

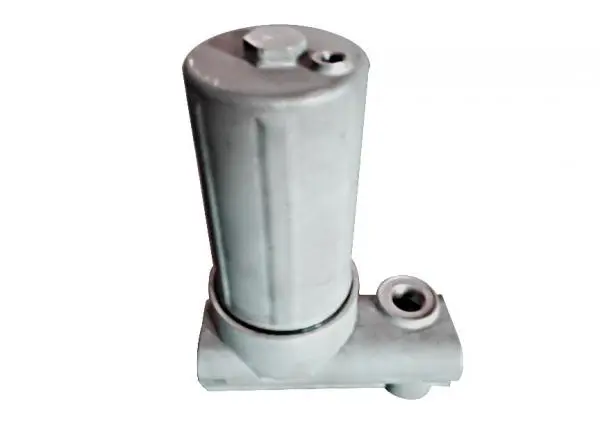

Casting filter elements manufactured through sand casting processes offer exceptional durability and performance characteristics. These elements are typically made from high-grade materials such as A356 aluminum alloy, which provides an excellent balance of strength, corrosion resistance, and thermal stability. The sand casting process allows for precise control over the element's porosity, structural integrity, and filtration efficiency.

A cartridge, on the other hand, is a comprehensive assembly that houses the filter element along with additional components such as end caps, cores, support structures, and sometimes housings. A filtration cartridge can be considered the complete package that is inserted into a filtration system, with the filter element being its key functional component. Cartridges are designed to be easily replaceable units within larger filtration systems.

The relationship between these terms can be understood as follows: all cartridges contain filter elements, but not all filter elements come in cartridge form. Some filter elements may be designed for direct installation into filtration systems without the additional structural components that would classify them as cartridges.

Function

The primary function of both filter elements and cartridges is contaminant removal, but their specific roles in filtration systems differ slightly. Filter elements focus exclusively on the separation process—trapping particles and impurities based on their pore size, material properties, and design characteristics. Casting filter elements produced through sand casting are particularly effective at removing metal chips, slag, and other contaminants from fluid systems.

When utilizing sand casting for producing filter elements, manufacturers can create complex internal structures that maximize filtration surface area while maintaining structural integrity. This process allows for the production of filter elements with precise pore sizes and distribution patterns, ensuring optimal filtration efficiency even under high-pressure conditions.

Cartridges perform the same filtration function but also provide additional benefits such as:

1. Enhanced handling capabilities that minimize contamination during replacement procedures

2. Improved sealing mechanisms that prevent bypass of unfiltered media

3. Structural support that maintains the filter element's integrity under pressure

4. Standardized dimensions for compatibility with specific filtration housing designs

The engineering considerations for casting filter elements through sand casting include careful selection of materials (such as A356 aluminum alloy), precise control of the casting process, and subsequent surface treatments like polishing to achieve the desired filtration characteristics. These elements typically undergo rigorous quality control measures to ensure compliance with international standards such as ASTM, AISI, DIN, BS, and JIS.

Application

The application contexts for filter elements and cartridges can vary significantly across industries. Casting filter elements produced through sand casting find extensive use in critical applications where reliability, durability, and precision filtration are paramount.

In the automotive industry, casting filter elements are essential components in fuel systems, hydraulic systems, and engine lubrication circuits. The 7.5kg casting weight typical of these elements provides substantial durability for withstanding the harsh operating conditions found in modern vehicles. The sand casting process enables the creation of filter elements with complex geometries that can be tailored to specific automotive applications.

Aerospace applications demand filter elements with exceptional reliability and performance under extreme conditions. Casting filter elements manufactured through precision sand casting processes meet these requirements by providing consistent filtration performance even at high altitudes and across wide temperature ranges. The A356 material commonly used in these elements offers an excellent strength-to-weight ratio, making it ideal for aerospace applications where weight considerations are critical.

In medical equipment manufacturing, filtration requirements are particularly stringent. Casting filter elements that undergo surface treatment such as polishing after the sand casting process can achieve the ultra-smooth surfaces necessary for medical applications. These elements help ensure the purity of gases and fluids used in medical devices, contributing to patient safety and equipment reliability.

The electrical and electronic industry relies on high-quality filtration to protect sensitive components from contamination. Casting filter elements produced through sand casting provide effective protection for cooling systems, insulating fluids, and process liquids used in the manufacture of electrical components. Their robust construction and precise filtration characteristics help prevent system failures and extend equipment lifespan.

When selecting between cartridge-based systems and standalone filter elements, manufacturers must consider factors such as:

1. Maintenance frequency and ease of replacement

2. System pressure requirements and flow rates

3. Space constraints and installation considerations

4. Specific contaminant profiles and filtration requirements

5. Cost considerations including both initial investment and long-term operational expenses

The sand casting process utilized by Rongbao Enterprise for producing casting filter elements represents a significant advancement in filtration technology. This process allows for the creation of filter elements with precisely controlled porosity, exceptional structural integrity, and optimal filtration efficiency. The resulting products meet or exceed international standards while providing customers with reliable performance and cost-effective filtration solutions.

In conclusion, while the terms "cartridge" and "filter element" are often used interchangeably, understanding their distinctions is crucial for selecting the appropriate filtration solution for specific industrial needs. Casting filter elements produced through advanced sand casting processes offer exceptional performance characteristics for demanding applications across multiple industries. These elements represent the cornerstone of effective filtration systems, ensuring the purity and quality of critical fluids and gases in industrial processes.
