Types Of Filter Elements

Rongbao.com/sand-casting/casting-filter-element">Filter elements are critical components in various industrial applications, including automotive, aerospace, medical equipment manufacturing, and electrical systems. These essential devices remove contaminants from fluids and gases, ensuring optimal performance and longevity of equipment. Understanding the different types of filter elements available is crucial for engineers and purchasing professionals seeking the most appropriate filtration solutions for their specific requirements.

By Material

The material composition of filter elements significantly influences their performance characteristics, durability, and suitability for specific applications. Various materials serve distinct purposes across different industries and operating environments.

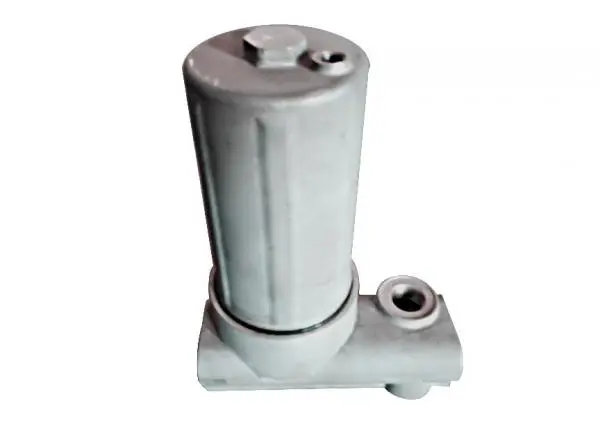

Metal filter elements, particularly casting filter elements, represent a premium category designed for demanding industrial applications. Among these, A356 aluminum alloy filters produced through sand casting processes offer exceptional strength-to-weight ratios and corrosion resistance. The 7.5kg casting weight typical of these elements provides substantial filtration capacity while maintaining structural integrity under pressure and temperature fluctuations. This robustness makes them ideal for applications in automotive systems, aerospace components, and medical equipment where reliability is paramount.

The sand casting process enables precise control over the porosity and flow characteristics of metal filter elements. This traditional yet sophisticated manufacturing method involves creating a mold from sand mixed with binding agents, into which molten metal is poured. When combined with surface treatments like polishing, these elements achieve superior particulate retention while minimizing pressure drop across the system. The controlled solidification patterns possible through sand casting create consistent pore structures throughout the filter matrix, ensuring uniform performance across production batches. Rongbao Enterprise specializes in this manufacturing technique, producing elements that comply with international standards, including ASTM, AISI, DIN, BS, and JIS.

stainless steel filter elements offer exceptional temperature resistance and mechanical strength, making them suitable for high-pressure applications where operational conditions might deform or damage less robust materials. Their resistance to chemical corrosion makes them particularly valuable in processing aggressive fluids or gases. While more expensive than some alternatives, their extended service life often provides superior long-term value.

Beyond metals, other common filter element materials include:

• Synthetic fibers (polypropylene, polyester, nylon)
• Natural materials (cotton, paper, cellulose)
• Ceramic and glass fiber composites
• Wire mesh screens of various alloys

Each material category offers distinct advantages in terms of chemical compatibility, temperature resistance, and filtration efficiency. For applications requiring both high mechanical strength and precise filtration capabilities, casting filter elements manufactured through sand casting techniques typically represent the optimal solution.

By Structural Design

The structural design of filter elements determines their flow characteristics, dirt-holding capacity, and overall performance efficiency. Engineers must carefully consider these designs when selecting filtration solutions for specific applications.

Pleated elements feature accordion-like folds that maximize surface area within a compact footprint. This design is particularly effective for applications requiring high flow rates with minimal pressure differential. Casting filter elements produced through sand casting can incorporate sophisticated pleated designs with precisely controlled channel geometries, optimizing fluid dynamics throughout the filtration process.

Depth filter elements utilize a gradient density structure where porosity progressively decreases along the flow path. This design enables the capture of various particle sizes throughout the element's depth, extending service life and improving overall efficiency. The sand casting process allows manufacturers to create complex internal architectures with controlled porosity gradients, making it ideal for producing high-performance depth filtration components.

Cylindrical and cartridge designs represent another common structural approach, offering easy installation and replacement in various housing configurations. These elements may incorporate multiple layers of filtration media to achieve specific performance targets. Casting filter elements in cylindrical formats benefits from the dimensional stability and structural integrity provided by the A356 alloy, particularly after surface treatment processes like polishing.

Screen and disc elements utilize flat or stacked configurations, offering excellent backwash capabilities and resistance to clogging. The precision possible through advanced sand casting techniques enables the production of screen elements with consistent aperture sizes and distribution patterns, ensuring reliable filtration performance even under challenging conditions.

By Filtration Mechanism

Understanding filtration mechanisms is essential when selecting appropriate filter elements for specific applications. Different mechanisms address various contaminant types and concentrations, influencing overall system efficiency and maintenance requirements.

Surface filtration represents the simplest mechanism, where particles larger than the filter's pore size are captured on its surface while smaller particles pass through. Casting filter elements utilizing surface filtration principles benefit from the dimensional stability and precision possible through sand casting processes. The polished surfaces of A356 alloy elements facilitate easier cleaning and regeneration, extending operational lifespan.

Depth filtration involves capturing particles throughout the thickness of the filter media rather than just on the surface. This mechanism provides higher dirt-holding capacity and extended service intervals. The complex internal structures achievable through sand casting make it ideal for producing depth filtration elements with graduated pore structures that efficiently trap contaminants of various sizes.

Cake filtration occurs when accumulated particles on the filter surface form a "cake" that enhances filtration efficiency by capturing progressively smaller contaminants. Casting filter elements designed for cake filtration applications benefit from the mechanical strength provided by A356 alloy, allowing them to support substantial cake formation without deformation or breakthrough.

Adsorption represents a chemical rather than physical filtration mechanism, where contaminants adhere to the filter media's surface through molecular attraction. While less common in casting filter elements, specialized surface treatments applied after the sand casting process can enhance adsorptive properties for specific applications.

Magnetic separation involves capturing ferromagnetic particles using magnetic fields. Certain casting filter elements incorporate magnetic components or ferromagnetic additives within the A356 alloy matrix, creating hybrid filtration solutions that combine mechanical separation with magnetic particle capture.

Conclusion

Selecting the appropriate filter element type requires careful consideration of material properties, structural design, and filtration mechanisms. For applications demanding high mechanical strength, temperature resistance, and precise filtration characteristics, casting filter elements produced through advanced sand casting processes represent an exceptional solution.

Rongbao Enterprise specializes in manufacturing premium A356 alloy filter elements using state-of-the-art casting techniques. Our products comply with international standards, including ASTM, AISI, DIN, BS, and JIS, ensuring consistent performance across global markets. With typical casting weights of 7.5kg and comprehensive surface treatment capabilities, including precision polishing, our filter elements deliver optimal performance in critical applications where reliability and efficiency are paramount. For more information about our filtration solutions or to discuss your specific requirements, please contact our technical team at selinazhou@xianrongbao.com or steve.zhou@263.net.
