Machining Of Stator Housings

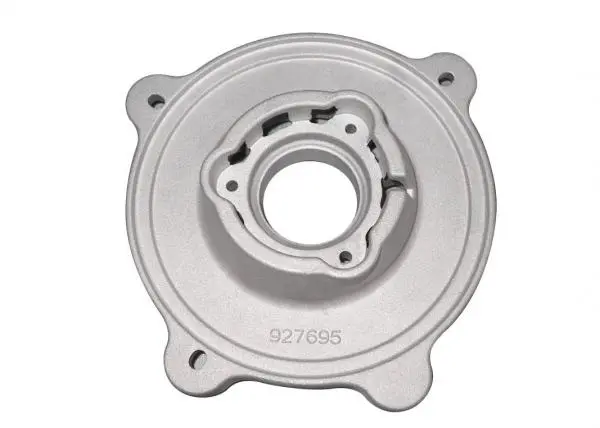

stator housings are critical components in various electrical and mechanical systems, performing the essential function of supporting and protecting stator windings while facilitating proper heat dissipation. The precision machining of these components demands specialized knowledge and advanced manufacturing techniques to ensure optimal performance in their intended applications. This comprehensive guide explores the intricacies of stator housing production, with particular emphasis onRongbao.com/aluminium-alloy-die-casting/casting-motor-front-cover"> low pressure die casting processes that enhance both quality and efficiency.
Working Principle
Stator housings serve as the structural foundation of electrical motors, generators, and other rotary equipment. Understanding their fundamental working principles is essential to appreciate the critical nature of their design and manufacturing requirements.
Fundamental Functions of Stator Housings
At its core, a stator housing provides mechanical support for the stator core and windings in electrical machines. This seemingly simple function encompasses several critical roles that directly impact the performance, efficiency, and longevity of the entire system:
First, the housing creates a rigid mounting structure that ensures precise alignment between the stator and rotor components. This alignment is crucial for maintaining consistent air gaps, which directly affects electromagnetic efficiency and prevents unwanted vibration or mechanical interference during operation.
Second, stator housings function as a thermal management system. They facilitate heat dissipation from the stator windings, typically incorporating cooling channels, fins, or liquid cooling passages depending on the application's requirements. This thermal regulation prevents overheating and extends the service life of both the windings and insulation materials.
Third, these housings provide environmental protection for the internal components, shielding them from contaminants, moisture, and physical damage. In applications like automotive electric motors or aerospace systems, this protective function becomes particularly critical under harsh operating conditions.
Material Considerations for Optimal Performance
The selection of appropriate materials for stator housings directly impacts their performance characteristics. A356 aluminum alloy, employed in our low pressure die casting process, offers an exceptional balance of properties that make it ideal for stator housing applications:
This aluminum alloy provides excellent thermal conductivity (approximately 151 W/m·K), enabling efficient heat transfer from the stator windings to the external environment. Combined with a lower density (2.68 g/cm³) compared to traditional ferrous materials, A356 contributes to significant weight reduction without compromising structural integrity – a crucial consideration in weight-sensitive applications like electric vehicles and aerospace systems.
Furthermore, A356 exhibits superior castability characteristics that enable the production of complex geometries with thin walls and intricate cooling channels. These features would be difficult or prohibitively expensive to achieve using conventional machining processes alone. The alloy's good corrosion resistance also ensures longevity in various operating environments without requiring extensive protective treatments.
Process Flow for Stator Housings
The manufacturing process for high-quality stator housings involves a carefully orchestrated sequence of operations, each contributing to the final component's performance characteristics. Our specialized approach utilizes low pressure die casting as the foundation, complemented by precision machining operations to achieve exacting specifications.
Preparation and Design Phase
The journey toward a precision-machined stator housing begins well before any physical manufacturing takes place. This critical preparation phase establishes the foundation for successful production:
Initially, detailed engineering analysis determines the specific requirements for the stator housing, including dimensional tolerances, surface finish specifications, material properties, and functional characteristics. These requirements are translated into comprehensive CAD models that drive subsequent manufacturing processes.
Low Pressure Die Casting Process
At the heart of our manufacturing approach lies the low pressure die casting (LPDC) process, which offers distinct advantages for stator housing production compared to conventional casting methods:
Unlike traditional gravity casting, LPDC utilizes controlled pneumatic pressure to drive molten A356 aluminum upward into the die cavity. This bottom-up filling approach creates laminar metal flow that significantly reduces turbulence, gas entrapment, and oxide inclusion formation – common defects in conventional casting processes.
The process begins with precision melting of A356 aluminum alloy in a sealed furnace under controlled atmospheric conditions to prevent oxidation. Temperature control is maintained within ±5°C to ensure consistent material properties. The molten metal is then transferred to the LPDC machine's holding furnace, which maintains ideal temperature conditions throughout the production cycle.
During the casting cycle, precisely regulated pneumatic pressure (typically 0.2-0.4 bar) forces the molten metal upward through a feed tube into the preheated die cavity. This controlled filling minimizes turbulence and ensures complete filling of thin-walled sections and complex features. The pressure is maintained during solidification to compensate for volumetric shrinkage, reducing porosity and enhancing mechanical properties.
After sufficient solidification time, the pressure is gradually released, and the die opens to allow removal of the cast component. Each casting undergoes immediate visual inspection before proceeding to controlled cooling and stress relief processes that prevent distortion and establish optimal microstructural characteristics.
Technical Capabilities
Our advanced manufacturing facilities and expertise enable us to produce stator housings that meet the most demanding requirements across diverse industries. These technical capabilities represent the culmination of continuous investment in equipment, processes, and human expertise.
Advanced Materials Processing
Our materials expertise extends beyond basic casting operations to encompass advanced material science that optimizes stator housing performance:
While A356 aluminum alloy forms the foundation of our stator housing production, our metallurgical capabilities allow precise control over composition and microstructure. The addition of carefully controlled amounts of strontium (typically 0.015-0.020%) promotes fine eutectic silicon structures that enhance mechanical properties and machinability. Titanium additions (0.10-0.15%) serve as grain refiners, creating finer grain structures that improve strength characteristics without compromising thermal conductivity.
Thermal treatment facilities enable the application of optimized T6 heat treatment cycles that develop peak mechanical properties through controlled solution treatment, quenching, and artificial aging. This process increases yield strength to approximately 230 MPa and tensile strength to 290 MPa while maintaining excellent elongation characteristics of 6-8%.
For specialized applications requiring enhanced wear resistance or reduced friction, our surface engineering capabilities include the application of hard anodizing treatments that create surface hardness values exceeding 400 HV while maintaining dimensional precision. These treatments can be selectively applied to specific functional surfaces without affecting the entire component.
Dimensional and Geometric Precision
The functional performance of stator housings depends heavily on their geometric accuracy and dimensional stability:
Our manufacturing processes consistently achieve form tolerances within 0.05mm for flatness, cylindricity, and perpendicularity across large components weighing up to 35kg. Position tolerances for critical features such as bearing seats and mounting points are maintained within 0.02mm relative to datum structures, ensuring perfect alignment in assembled systems.
Surface finish control ranges from Ra 0.8μm for sealing and interface surfaces to controlled roughness profiles for adhesive bonding applications. This precision extends to internal features such as cooling channels, where consistent surface characteristics ensure optimal thermal transfer and fluid flow properties.
Dimensional stability testing under thermal cycling conditions verifies that components maintain critical tolerances throughout their operational temperature range. This capability is particularly important for applications in electric vehicle drivetrains and aerospace systems, where thermal expansion must be precisely predicted and accommodated.
Conclusion
Our commitment to continuous innovation in manufacturing technologies enables us to address evolving market needs, including the increasing demand for lightweight components with enhanced thermal management capabilities in electric vehicle applications and the stringent reliability requirements of aerospace and medical systems.
For inquiries regarding custom stator housing solutions tailored to your specific application requirements, please contact our engineering team at selinazhou@xianrongbao.com or steve.zhou@263.net. Our specialists will work closely with your design team to develop optimized components that enhance the performance and reliability of your products.
References
- ASTM B108/B108M - Standard Specification for Aluminum-Alloy Permanent Mold Castings
- AISI Standards for Non-Ferrous Metals and Alloys
- International Journal of Metalcasting: "Advances in Low Pressure Die Casting Technology"
- ASM Handbook, Volume 15: Casting
- Journal of Materials Processing Technology: "Thermal Management in Die Casting Processes"
