What process is used for cast housing?

Rongbao.com/aluminium-alloy-die-casting/cast-housing">cast housing components play a crucial role in various industries, from automotive and aerospace to medical equipment and electronics manufacturing. The process used to create these essential parts combines precision engineering with advanced manufacturing techniques. In this comprehensive guide, we'll explore the die casting process, the machining process, and why combining these methods results in superior casting housing products.

Die Casting Process

Die casting is a metal forming process that produces geometrically complex metal parts through the use of reusable molds, called dies. This process is particularly well-suited for manufacturing cast housing components due to its ability to create intricate shapes with excellent surface finishes.

The die casting process typically involves the following steps:

1. Die Preparation: A steel mold is created with the desired shape of the cast housing component. This mold is designed to withstand high pressures and temperatures.
2. Metal Melting: The chosen metal alloy, often an aluminum alloy for cast housing applications, is melted in a furnace.
3. Injection: The molten metal is forcefully injected into the die cavity at high pressure. This pressure can range from 10 to 175 MPa (1,450 to 25,400 psi), ensuring that the metal fills even the smallest details of the mold.
4. Cooling and Solidification: Once injected, the metal begins to cool and solidify rapidly. The high pressure is maintained during this phase to prevent defects like shrinkage or porosity.
5. Ejection: After the part has solidified, the die is opened, and the cast housing is ejected using pins built into the mold.
6. Trimming and Finishing: Any excess material, known as flash, is removed from the part, and additional finishing operations may be performed as needed.

Die casting offers several advantages for producing cast housing components:

• High dimensional accuracy and smooth surface finish
• Ability to create complex geometries and thin walls
• High production rates and cost-effectiveness for large volumes
• Excellent strength-to-weight ratio, especially with aluminum alloys
• Good thermal and electrical conductivity

At Rongbao Enterprise, we specialize in aluminum alloy die casting for cast housing production. Our process ensures anticorrosion properties and meets precise specifications, including custom roughness requirements based on client drawings.

Machining Process

While die casting produces near-net-shape components, many cast housing applications require tighter tolerances or specific features that can only be achieved through additional machining. The machining process involves removing material from the cast part to create the final desired shape and dimensions.

Common machining operations performed on cast housing components include:

1. Milling: Used to create flat surfaces, slots, or complex 3D contours on the cast housing.
2. Drilling: Creates holes for mounting points, wire passages, or other functional requirements.
3. Boring: Enlarges and refines existing holes to precise diameters.
4. Tapping: Cuts internal threads for fasteners or other threaded components.
5. Grinding: Achieves extremely smooth surfaces or tight dimensional tolerances.
6. Turning: For cylindrical features on cast housing components.

Modern machining processes often utilize Computer Numerical Control (CNC) technology, which allows for highly precise and repeatable results. CNC machining centers can perform multiple operations on a cast housing component without the need for manual repositioning, improving efficiency and accuracy.

The machining process offers several benefits for cast housing production:

• Achieves tighter tolerances than die casting alone
• Allows for the creation of specific features not possible through casting
• Improves surface finish for critical interfaces or sealing surfaces
• Enables customization and modification of standard cast components
• Facilitates the integration of casting housing with other parts in an assembly

•

Why Combine Die Casting with Machining?

The combination of die casting and machining processes creates a synergy that results in superior cast housing products. This integrated approach offers numerous advantages:

1. Optimized Material Usage: Die casting produces a near-net-shape part, minimizing the amount of material that needs to be removed during machining. This reduces waste and lowers overall production costs.
2. Improved Dimensional Accuracy: While die casting can achieve good dimensional accuracy, machining allows for even tighter tolerances where needed, ensuring perfect fit and function of the cast housing in its final application.
3. Enhanced Surface Finish: Die casting provides an excellent initial surface finish, which can be further refined through machining processes to meet specific requirements for smoothness or texture.
4. Flexibility in Design: The combination of processes allows for more complex geometries and features that would be difficult or impossible to achieve with either process alone.
5. Cost-Effective Production: For medium to high volume production runs, the die casting process is highly efficient. Subsequent machining can be targeted only where necessary, maintaining cost-effectiveness while achieving high-quality results.
6. Material Property Optimization: Die casting creates a uniform microstructure throughout the part, while machining can selectively modify surfaces or create features without compromising the overall material properties.
7. Reduced Assembly Requirements: By combining casting and machining, more features can be integrated into a single component, potentially reducing the need for additional parts and simplifying assembly processes.

At Rongbao Enterprise, we have perfected the integration of die casting and machining processes for cast housing production. Our state-of-the-art facilities and experienced engineers ensure that each component meets the highest standards of quality and precision.

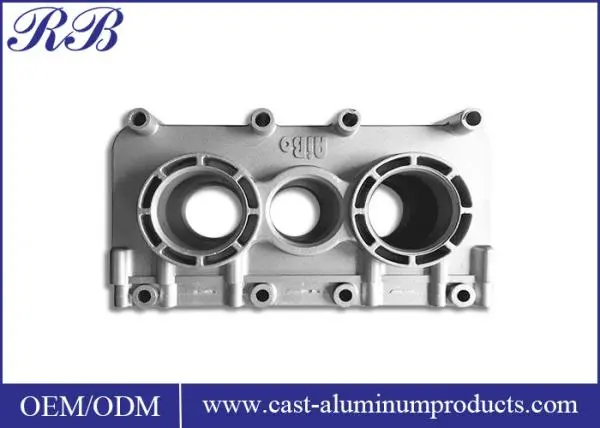

The specifications of our cast housing products include:

• Process: Die Casting + Machining
• Die Material: Steel
• Roughness: Based on Drawing
• Material: Cast Aluminum Alloy
• Feature: Anticorrosion

By leveraging the strengths of both die casting and machining, we can meet the demanding requirements of industries such as automotive, aerospace, medical equipment manufacturing, and electronics. Our casting housing components offer reasonable cost control, stable and timely delivery, controllable product quality, and excellent after-sales service.

Conclusion

The process used for housing production is a sophisticated combination of die casting and machining. This integrated approach allows for the creation of complex, high-precision components that meet the exacting standards of modern industry. By understanding the strengths of each process and how they complement each other, manufacturers can produce cast parts that offer superior performance, longevity, and value.

For those in the automotive, aerospace, medical, or electronics industries seeking high-quality casting solutions, Rongbao Enterprise offers expertise in aluminum alloy die casting combined with precision machining. Our commitment to excellence ensures that your casting housing components will meet or exceed your specifications.

To learn more about our cast housing manufacturing capabilities or to discuss your specific project requirements, please contact us at selinazhou@xianrongbao.com or steve.zhou@263.net. Our team of experts is ready to assist you in finding the optimal solution for your casting needs.

References

1. Campbell, J. (2015). Complete Casting Handbook: Metal Casting Processes, Techniques and Design. Butterworth-Heinemann.
2. Groover, M. P. (2020). Fundamentals of Modern Manufacturing: Materials, Processes, and Systems. John Wiley & Sons.
3. ASM International. (2008). ASM Handbook, Volume 15: Casting. ASM International.
4. Kalpakjian, S., & Schmid, S. R. (2014). Manufacturing Engineering and Technology. Pearson.
5. North American Die Casting Association. (2018). NADCA Product Specification Standards for Die Castings. NADCA.
