What is the material used for cast housing?

In the world of manufacturing, particularly in industries like automotive, aerospace, medical equipment, and electronics, the choice of materials for Rongbao.com/aluminium-alloy-die-casting/cast-housing">cast housing plays a crucial role in product quality, performance, and longevity. Housings are integral components in many mechanical systems, providing structural support and protection for internal parts. One of the most critical aspects of producing high-quality casting housings is the selection of appropriate die materials. This article delves into the world of die materials, with a specific focus on steel, exploring why it's the preferred choice and examining common steel grades used in die casting dies.

Die Material: Steel

When it comes to die materials for housing production, steel reigns supreme. The die is the mold into which molten metal is injected to form the cast housing. Given the extreme conditions it must withstand, including high temperatures, pressures, and repetitive use, the die material must possess exceptional properties. Steel, with its unique combination of strength, durability, and thermal conductivity, has emerged as the material of choice for die casting dies.

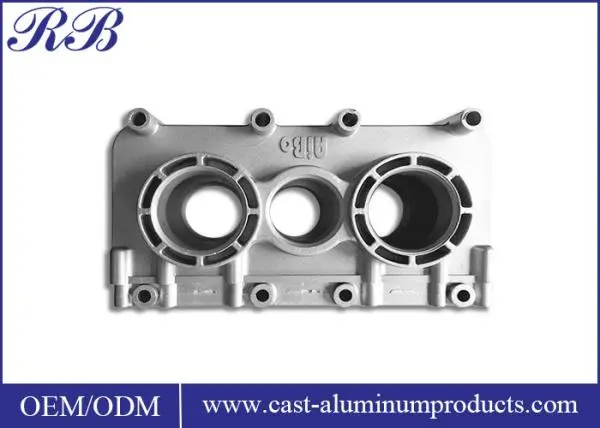

Steel dies are used extensively in the aluminum alloy die casting process, which is a popular method for producing cast housings. This process involves injecting molten aluminum alloy into a steel mold under high pressure. The resulting casting housing components offer excellent dimensional accuracy, smooth surface finish, and complex geometries that are often difficult to achieve with other manufacturing methods.

At Rongbao Enterprise, we specialize in producing high-quality cast housings through the aluminum alloy die casting process. Our cast housings are known for their precision, durability, and anticorrosion properties. The process typically involves die casting followed by machining to achieve the desired specifications, including specific roughness requirements as per customer drawings.

Why Is Steel for Dies?

The selection of steel as the primary material for die casting dies is not arbitrary. Several key properties make steel an ideal choice for this application:

1. High Strength and Hardness: Steel can withstand the extreme pressures involved in the die casting process without deforming. This ensures that the cast housing maintains its intended shape and dimensions over numerous production cycles.
2. Thermal Stability: Die casting involves working with molten metals at high temperatures. Steel's ability to maintain its structural integrity at elevated temperatures is crucial for producing consistent, high-quality cast housings.
3. Wear Resistance: The repetitive nature of die casting subjects the die to significant wear. Steel's excellent wear resistance properties help extend the die's lifespan, reducing production costs and maintaining product quality over time.
4. Thermal Conductivity: While not as conductive as some other metals, steel offers a good balance of thermal conductivity. This property is essential for controlling the cooling rate of the molten metal within the die, which affects the final structure and properties of the cast housing.
5. Machinability: Steel dies can be precisely machined to create complex geometries and fine details necessary for many housing designs. This versatility allows for the production of a wide range of casting housing types to meet diverse industry needs.
6. Cost-Effectiveness: Compared to other materials that could potentially be used for dies, steel offers a good balance of performance and cost. Its longevity and ability to produce high volumes of cast housings make it an economically viable choice for manufacturers.

These properties collectively make steel an excellent material for die casting dies, enabling the production of high-quality cast housings that meet the stringent requirements of industries such as automotive, aerospace, and medical equipment manufacturing.

Common Steel Grades for Die Casting Dies

Not all steels are created equal when it comes to die casting applications. Several specific grades of steel have been developed or identified as particularly suitable for die casting dies. These grades offer the optimal balance of properties required for the demanding conditions of die casting. Some of the most common steel grades used for die casting dies include:

1. H13 Hot Work Tool Steel: This is one of the most widely used steel grades for die casting dies. H13 offers excellent resistance to thermal fatigue, good toughness, and high temperature strength. It's particularly well-suited for aluminum die casting.
2. H11 Hot Work Tool Steel: Similar to H13, H11 offers good hot hardness and resistance to thermal fatigue. It's often used for smaller dies or those with less complex geometries.
3. DH31 Hot Work Tool Steel: This grade offers improved thermal fatigue resistance compared to H13, making it suitable for applications where die life is a critical factor.
4. P20 Mold Steel: While more commonly used in plastic injection molding, P20 can also be used for some die casting applications, particularly for larger dies or when lower production volumes are expected.
5. 4140 Alloy Steel: This grade is sometimes used for die casting dies, offering a good combination of strength and toughness. It's often used for supporting components in die assemblies.

The choice of steel grade depends on various factors, including the specific alloy being cast, the complexity of the cast housing design, the expected production volume, and the operating conditions of the die casting process. At Rongbao Enterprise, we carefully select the appropriate steel grade for each die based on these considerations, ensuring optimal performance and longevity of our dies and, consequently, the highest quality cast housings for our customers.

It's worth noting that advancements in metallurgy and heat treatment processes continue to improve the performance of these steel grades, and new grades are being developed to meet the evolving needs of the die casting industry. This ongoing innovation contributes to the production of increasingly sophisticated and high-performance cast housings.

Conclusion

The material used for casting housing dies plays a pivotal role in the quality, efficiency, and cost-effectiveness of the die casting process. Steel, with its exceptional combination of properties, has established itself as the material of choice for die casting dies. The selection of specific steel grades, such as H13 or H11, allows manufacturers to tailor the die material to the specific requirements of each application, ensuring optimal performance and longevity.

At Rongbao Enterprise, we leverage our expertise in aluminum alloy die casting and our deep understanding of die materials to produce high-quality cast housings that meet the exacting standards of industries such as automotive, aerospace, and medical equipment manufacturing. Our process, which combines die casting with precision machining, allows us to achieve the desired specifications, including specific roughness requirements and anticorrosion properties.

As the demand for more complex and high-performance housings continues to grow, the importance of proper die material selection cannot be overstated. It's a critical factor in meeting the challenges of reasonable cost control, stable and timely delivery, controllable product quality, and effective after-sales service that our customers in various industries demand.

For more information about our cast production capabilities or to discuss your specific requirements, please don't hesitate to contact us at selinazhou@xianrongbao.com or steve.zhou@263.net. Our team of experts is ready to assist you in finding the optimal solution for your casting needs.

References

1. ASM International. (2008). Die Casting: Die Materials. ASM Handbook, Volume 15: Casting.
2. Andresen, B. (2005). Die Casting Engineering: A Hydraulic, Thermal, and Mechanical Process. Marcel Dekker, Inc.
3. Naeem, S. (2015). Steel Selection for Die Casting Dies. Die Casting Engineer, 59(3), 30-33.
4. Vinarcik, E. J. (2003). High Integrity Die Casting Processes. John Wiley & Sons.
5. Street, A. (2019). The Diecasting Book. Lulu Press, Inc.
