What are the common defects in die casting?

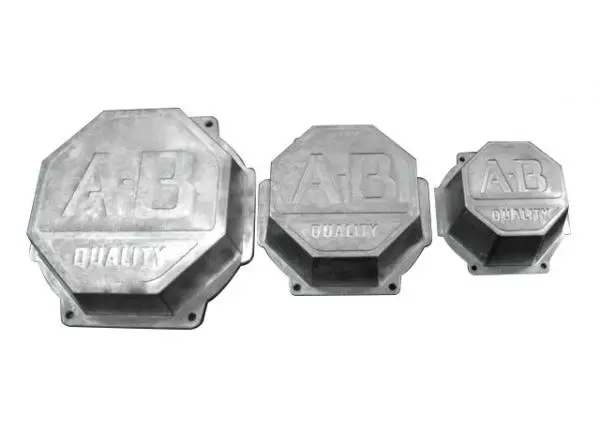

Despite its numerous advantages, Rongbao.com/aluminium-alloy-die-casting/motor-cover-casting">die casting presents certain technical challenges that can affect the quality and performance of finished components. Understanding these common defects, their root causes, and potential solutions is essential for manufacturers and purchasing decision-makers seeking to maintain high quality standards while optimizing production costs.

This article examines three prevalent defect categories: surface protrusions, porosity, and shrinkage. By analyzing these issues in detail, we aim to provide valuable insights for engineering and procurement professionals working with aluminum alloy die cast components.

Small Protrusions On The Surface Of The Casting

Surface protrusions represent one of the most visible quality issues in die casting. These unwanted features appear as small bumps, fins, or irregularities on the otherwise smooth surface of cast components. While sometimes minor in nature, these defects can affect dimensional accuracy, interfere with assembly operations, and compromise aesthetic quality for visible parts.

Two primary factors contribute to the formation of surface protrusions in die cast components: mold surface condition and cavity imperfections.

When the mold surface is rough, it creates microscopic valleys and peaks that transfer directly to the solidified metal during the casting process. This roughness may develop gradually through normal wear during production cycles or may result from inadequate surface finishing during die fabrication. As molten aluminum fills the cavity under high pressure, it conforms precisely to these surface irregularities, reproducing them on the finished component.

The degree of roughness transferred depends on several factors, including the aluminum alloy's viscosity in its molten state, injection pressure, and mold temperature. Higher pressures tend to force the metal into even the smallest surface imperfections, making this defect particularly problematic in high-pressure die casting operations.

Similarly, scratches, pits, or cracks on the inner surface of the cavity create corresponding protrusions on cast parts. These imperfections may develop through mechanical damage during die handling, thermal fatigue from repeated heating and cooling cycles, or chemical reactions between the molten aluminum and die materials. Once present, these cavity imperfections function as negative spaces that fill with aluminum during injection, creating positive features on the casting surface.

Addressing surface protrusion defects requires a multifaceted approach. Regular die maintenance, including polishing and reconditioning of cavity surfaces, helps prevent roughness-induced protrusions. For high-precision applications, implementing advanced surface treatments for dies, such as PVD (Physical Vapor Deposition) coatings, can enhance surface hardness and reduce wear rates, maintaining smooth cavity surfaces over more extended production runs.

Additionally, optimizing process parameters such as injection speed and pressure can minimize the transfer of minor surface imperfections to cast components. For critical applications, specialized release agents formulated to fill microscopic surface irregularities may provide temporary remediation while more permanent die repairs are scheduled.

What causes porosity in die casting?

Porosity represents one of the most challenging and potentially serious defects in die casting operations. Unlike surface protrusions that affect exterior appearance, porosity manifests as internal voids or cavities within the casting structure. These microscopic to visible-sized voids can significantly impact mechanical properties, pressure tightness, and long-term reliability of components.

While numerous factors can contribute to porosity in die castings, two prominent causes merit particular attention: excessive lubricant application and inadequate venting.

Die lubricants, also known as release agents, serve several crucial functions in the die casting process. They facilitate part release, extend die life, and help regulate cavity surface temperature. However, when applied in excessive quantities, these materials can create significant quality issues. As molten aluminum contacts the die surface, excess lubricant vaporizes rapidly, generating gas that becomes entrapped within the solidifying metal.

The severity of lubricant-induced porosity depends on several factors, including the chemical composition of the release agent, application method, and coating thickness. Spray-applied lubricants are particularly prone to creating porosity when over-applied, as inconsistent coverage can lead to puddles or thick spots that generate large volumes of gas during metal injection.

This form of porosity typically appears as randomly distributed, round voids, often concentrated near the component surface where the lubricant interaction occurs. In severe cases, these voids can coalesce to form larger cavities that compromise structural integrity or create leak paths in pressure-containing applications.

Similarly critical is the condition of the die casting tool's venting system. During metal injection, the high-velocity aluminum displaces air within the cavity. If this air cannot escape efficiently through designated venting channels, it becomes entrapped within the solidifying metal, creating gas porosity. When exhaust holes become blocked through accumulated aluminum flash, lubricant residue, or other debris, venting efficiency decreases dramatically.

Inadequate venting typically creates porosity concentrated in the last areas to fill during injection, often appearing as irregular, jagged voids. These defects are particularly problematic in thin-walled sections where high metal velocities can create turbulence that further entraps air. In severe cases, inadequate venting can also cause incomplete filling of the cavity, resulting in missing features or dimensional inaccuracies.

Addressing porosity issues requires systematic investigation and targeted countermeasures. For lubricant-related porosity, implementing precise application systems that deliver consistent, minimal quantities of release agent can dramatically reduce defect rates. Many modern die casting operations utilize automated spray systems with programmed patterns and dosing control to minimize variation.

Similarly, regular maintenance of venting systems, including cleaning of exhaust channels and replacement of damaged vents, helps ensure efficient air evacuation during injection. For complex components or challenging geometries, vacuum-assisted die casting technologies may provide additional capability to remove gases from the cavity prior to and during metal injection, significantly reducing porosity defects.

What causes shrinkage in casting?

Shrinkage defects represent a fundamental challenge in die casting that stems from the physical properties of metals during solidification. As molten aluminum transitions from liquid to solid state, it undergoes volumetric contraction, creating potential for voids, depressions, or dimensional inaccuracies in the finished component. Two key factors significantly influence shrinkage defect formation: component design characteristics and thermal management.

When die castings feature unreasonable processability characteristics, particularly with wall thickness variations that exceed recommended design guidelines, they become highly susceptible to shrinkage defects. This occurs because sections with different material volumes solidify at different rates, creating tension as thinner sections solidify first while thicker areas remain in liquid or semi-solid state.

The critical relationship between adjacent wall thicknesses fundamentally affects solidification patterns. Engineering design guidelines typically recommend maintaining thickness ratios between connected sections below 2:1 to minimize differential shrinkage. Components with drastic transitions from thin to thick sections frequently develop shrinkage porosity at the intersection points, where the thinner section solidifies and prevents liquid metal from feeding the thicker area during its continued contraction.

These design-induced shrinkage defects typically appear as internal porosity with characteristic dendritic or branching patterns that follow the thermal gradient during solidification. In severe cases, external shrinkage may manifest as sink marks or depressions on surfaces opposite thick sections, compromising both functional and aesthetic qualities.

Equally significant is the influence of molten metal temperature on shrinkage defect formation. When processing temperatures exceed recommended ranges for specific aluminum alloys, the metal exhibits greater thermal contraction during cooling. Excessively high temperatures also extend the time required for complete solidification, allowing more opportunity for shrinkage cavity formation.

The relationship between metal temperature and solidification characteristics is particularly critical for complex components with varying section thicknesses. Higher temperatures delay the onset of solidification and extend the mushy zone (semi-solid state) period, increasing the risk of isolated liquid pockets becoming trapped without access to feed metal. As these isolated regions solidify, they contract volumetrically with no mechanism for compensating material flow, resulting in internal voids.

Addressing shrinkage defects requires integrated approaches spanning design, material, and process considerations. At the design stage, implementing smooth transitions between section thicknesses, adding strategic ribs instead of bulk material, and positioning heavier sections with access to adequate feed metal can dramatically reduce shrinkage tendency.

From a process perspective, optimizing metal temperature based on alloy characteristics and component geometry provides a fundamental control mechanism. Modern die casting operations often employ thermal imaging technology to verify metal temperature at critical points in the process, ensuring consistency across production runs.

Advanced simulation tools that model solidification patterns now allow engineers to predict potential shrinkage issues before tool fabrication, enabling proactive design modifications. For existing components experiencing shrinkage defects, strategic adjustments to gate locations or sizes can improve metal feeding during solidification, while modified cooling systems can help regulate solidification progression through critical sections.

Conclusion

For organizations sourcing die cast components, recognizing these common defects and their underlying causes provides valuable context for supplier selection, quality specification development, and technical discussion. The most effective procurement strategies balance cost considerations with appropriate quality requirements, focusing inspection activities on critical characteristics most relevant to component function.

Through collaborative approaches between design engineers, process specialists, and quality professionals, the defects can be systematically minimized, delivering components that meet demanding performance requirements for automotive, aerospace, medical, and electronic applications.

For more information about aluminum alloy die casting solutions that address these common defect challenges, please contact Rongbao Enterprise's technical team at selinazhou@xianrongbao.com or steve.zhou@263.net. With over two decades of specialized experience in high-pressure, low-pressure die cast, gravity casting, and precision machining services, we deliver optimized component solutions that balance quality requirements with production efficiency.

References

• North American Die Casting Association. (2023). NADCA Product Specification Standards for Die Castings.
• American Foundry Society. (2024). Aluminum Casting Technology.
• International Journal of Metalcasting. (2023). Advances in Die Casting Process Control.
• ASM International. (2022). ASM Handbook, Volume 15: Casting.
