Types Of Ejector Pin Marks In Die Casting

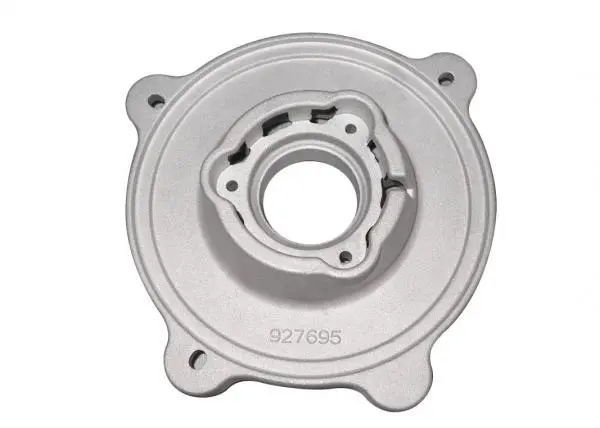

Rongbao.com/aluminium-alloy-die-casting/casting-motor-front-cover">Die casting is a metal casting process characterized by forcing molten metal under high pressure into a mold cavity. This manufacturing method is ideal for producing geometrically complex metal parts with excellent dimensional accuracy and smooth surfaces. However, like any manufacturing process, it presents certain challenges that engineers and manufacturers must address to achieve optimal results.

One common challenge is the presence of ejector pin marks on finished components. Ejector pins are an essential process and are responsible for releasing solidified parts from the mold. While necessary for production, these pins inevitably leave marks on cast parts that may affect both aesthetics and functionality.

Indentations/Dimples

Indentations or dimples are perhaps the most common type of ejector pin marks found on die cast components. These appear as slight depressions on the surface of the finished product, typically circular in shape, corresponding to the exact locations where ejector pins make contact with the solidified metal during part removal.

The primary cause of these indentations is the pressure exerted by ejector pins during the ejection process. When a part has fully solidified in the die cavity, ejector pins push against the component to release it from the mold. This physical interaction creates localized pressure points that can deform the part's surface, especially if the metal has not fully hardened or if excessive ejection force is applied.

Several factors influence the severity of indentation marks:

Ejection timing: If parts are ejected before sufficient solidification, the material may still be partially malleable, leading to deeper indentations. Proper cooling time before ejection can significantly reduce this issue.

Pin design and condition: The diameter, tip design, and surface finish of ejector pins directly affect mark formation. Worn or damaged pins often create more pronounced indentations compared to well-maintained ones.

Alloy properties: Different aluminum alloys exhibit varying resistance to deformation. Alloys with higher hardness typically show less susceptibility to indentation marks.

Manufacturers can mitigate indentation issues through strategic pin placement during die design. Positioning ejector pins on non-critical or non-visible surfaces can make these marks less problematic. Additionally, implementing advanced cooling systems that ensure uniform solidification throughout the part helps reduce material susceptibility to deformation during ejection.

For applications where surface quality is paramount, post-processing operations like polishing or surface treatments may be necessary to eliminate or minimize the appearance of indentations. However, prevention through proper die design and process optimization is generally more cost-effective than remediation.

White/Glossy Marks

White or glossy marks represent another distinctive type of ejector pin defect that manifests as discolored areas on the die cast part's surface. Unlike indentations that primarily affect the physical topography of the component, white marks involve alterations in the surface characteristics of the metal.

These marks typically appear as light-colored, sometimes reflective spots that contrast with the surrounding surface. They occur when ejector pins create localized cooling conditions that differ from the rest of the part during solidification. This differential cooling affects the microstructure of the aluminum alloy in those specific areas.

Several mechanisms contribute to the formation of white/glossy marks:

Thermal conductivity differences: Ejector pins, usually made of tool steel, conduct heat differently than the die casting mold. When molten aluminum contacts the pins, it may cool at different rates compared to metal touching the main die surfaces.

Surface finish variations: The interface between the ejector pin and the die cavity may have microscopic gaps or differences in surface roughness that affect how the molten metal flows and solidifies in these regions.

Release agent interaction: Die lubricants or release agents may accumulate differently around ejector pins, altering the chemical interaction with the molten metal and affecting surface appearance.

White marks can be particularly problematic for components where visual appearance is critical, such as automotive trim pieces or consumer product housings. They often persist even after standard finishing operations.

Addressing white/glossy marks typically involves optimizing both tooling and process parameters. Temperature control improvements, including regulated cooling of ejector pins to match the thermal characteristics of the surrounding die, can help eliminate temperature gradients that cause these marks. Some manufacturers employ specialized coatings on ejector pins to modify their surface properties and minimize marking tendencies.

For existing components with white marks, surface treatments such as anodizing, painting, or mechanical finishing may mask these imperfections. However, these secondary operations add cost and processing time, making prevention the preferred approach in high-volume production environments.

Burrs or Flash

Burrs or flash associated with ejector pins represent a more severe category of defects compared to indentations or white marks. These manifest as thin projections of excess metal that form at the interface between ejector pins and the die cavity. Unlike the previous types that primarily affect aesthetics, burrs can impact both appearance and functionality, potentially interfering with assembly operations or component performance.

The formation of burrs around ejector pins occurs when molten metal infiltrates the small clearance gap between the pin and its bore in the die. Several factors contribute to this condition:

Excessive clearance: Normal wear and tear gradually increases the gap between ejector pins and their bores. As this clearance grows, it becomes easier for molten metal to penetrate these spaces under high injection pressure.

Pin alignment issues: Misalignment between pins and their corresponding bores creates uneven clearances, allowing metal to flow into wider gaps while ejection forces become concentrated on areas with tighter tolerances.

Injection pressure: Higher injection pressures, while beneficial for filling complex geometries, increase the likelihood of metal penetration into pin clearances. This is particularly true for thin-walled components that require higher pressures for complete filling.

Alloy viscosity: Some aluminum alloys with lower viscosity in the molten state more readily infiltrate small gaps in the die assembly.

Burrs present both quality and production challenges. From a quality perspective, they create sharp edges that may pose safety hazards and affect component fit. From a production standpoint, pronounced burrs can interfere with automatic ejection systems, potentially causing parts to stick in the die or damaging ejector mechanisms.

Addressing burr formation requires diligent maintenance and potential design modifications. Regular inspection and replacement of worn ejector pins help maintain proper clearances. Some advanced die casting operations implement tapered pin designs or special sealing mechanisms that minimize the risk of metal infiltration while maintaining effective ejection capabilities.

For components where burrs have formed, secondary operations like deburring, tumbling, or precision grinding may be necessary to remove these projections. These operations add cost and time to the manufacturing process, emphasizing the importance of preventing burr formation during casting.

For more information about advanced die casting solutions and how to address ejector pin mark challenges in your specific applications, please contact our technical team at selinazhou@xianrongbao.com or steve.zhou@263.net. At Rongbao Enterprise, we leverage over two decades of experience in aluminum alloy casting and precision processing to help our clients achieve optimal results.

References

• North American Die Casting Association. (2021). NADCA Product Specification Standards for Die Castings.
• Society of Manufacturing Engineers. (2020). Die Casting Handbook.
• American Society for Metals. (2022). ASM Handbook Volume 15: Casting Processes.
