Low pressure aluminium die casting process

Low pressure die casting is an advanced manufacturing technique widely used to produce high-quality aluminum alloy parts for automotive, aerospace, and other industries. This process offers superior control over metal flow and solidification compared to traditional gravity die casting, resulting in castings with improved mechanical properties and fewer defects. In this comprehensive guide, we'll explore the Rongbao.com/low-pressure-casting/prototype-aluminum-casting">low pressure aluminum alloy casting process, quality inspection methods, and examine a real-world case study from Rongbao Enterprise.

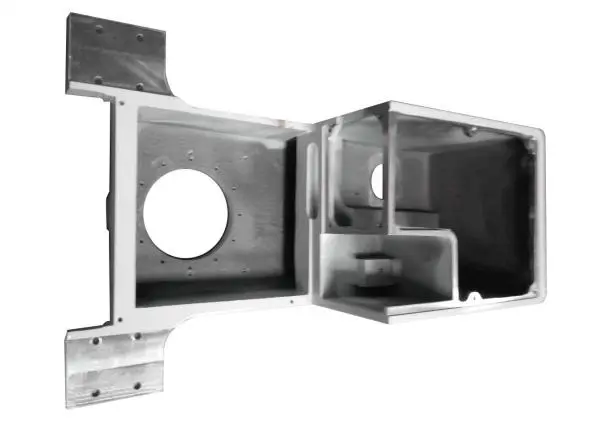

Step-by-Step Overview of the Low Pressure Die Casting Process

The low pressure die casting process for aluminum alloys involves several key steps that work together to produce high-quality, complex parts with excellent dimensional accuracy. Let's break down each stage of this sophisticated manufacturing technique:

1. Mold Preparation

The process begins with thorough preparation of the die casting mold. This typically involves:

• Cleaning the mold surfaces to remove any debris or residue from previous castings
• Applying a mold release agent to facilitate easy removal of the finished part
• Preheating the mold to an optimal temperature, usually between 200-350°C, to ensure proper metal flow and reduce thermal shock

2. Melting and Holding the Aluminum Alloy

The aluminum alloy is melted in a furnace and transferred to a sealed, pressurized holding furnace located beneath the die. Key considerations during this stage include:

• Maintaining precise temperature control to ensure the metal remains in the optimal fluidity range
• Minimizing exposure to oxygen to prevent oxidation and maintain alloy purity
• Degassing the molten metal to remove dissolved hydrogen, which can cause porosity in the final casting

3. Applying Low Pressure

Once the mold is prepared and the metal is at the correct temperature, the low pressure die casting process begins:

• The mold is closed and locked securely in place
• Pressurized air or inert gas (typically 0.2 to 1.0 bar) is applied to the surface of the molten metal in the holding furnace
• This pressure forces the molten aluminum up through a feed tube and into the mold cavity

4. Filling and Solidification

As the molten aluminum enters the mold cavity:

• The low pressure ensures a smooth, laminar flow of metal, reducing turbulence and air entrapment
• The mold fills from the bottom up, allowing for controlled solidification
• Pressure is maintained throughout the solidification process to feed shrinkage and minimize porosity

5. Cooling and Ejection

After the casting has solidified:

• The pressure is released, allowing any excess metal to flow back into the holding furnace
• The mold is opened, and the casting is ejected using pins or a robotic arm
• The part is allowed to cool further before undergoing any post-processing operations

6. Post-Processing

Depending on the specific requirements of the part, various post-processing steps may be necessary:

• Trimming excess material and removing gates and runners
• Heat treatment to enhance mechanical properties
• Surface finishing operations such as machining, polishing, or coating

By following this step-by-step process, manufacturers can consistently produce high-quality aluminum alloy castings with excellent surface finish, tight tolerances, and superior mechanical properties.

Quality Inspection Methods in Low Pressure Die Casting

Ensuring the quality of low pressure aluminum alloy castings is crucial for meeting the stringent requirements of industries such as automotive and aerospace. A comprehensive quality control program incorporates various inspection methods throughout the manufacturing process. Let's explore some of the key quality inspection techniques used in low pressure die casting:

1. Visual Inspection

Visual inspection is often the first line of defense in identifying defects:

• Trained inspectors examine each casting for visible flaws such as surface porosity, cracks, or incomplete fill
• Specialized lighting and magnification tools may be used to enhance detection capabilities
• This method is quick and cost-effective but limited to surface-level defects

2. Dimensional Measurement

Ensuring parts meet specified dimensions is critical for proper fit and function:

• Coordinate Measuring Machines (CMMs) provide highly accurate 3D measurements of complex geometries
• Optical scanning systems can quickly capture and compare part dimensions to CAD models
• Go/no-go gauges offer a simple pass/fail check for critical dimensions

3. Non-Destructive Testing (NDT)

NDT methods allow for thorough inspection without damaging the part:

• X-ray and computed tomography (CT) scanning reveal internal defects such as porosity or inclusions
• Ultrasonic testing can detect subsurface flaws and measure wall thickness
• Dye penetrant testing highlights surface-breaking defects that may be invisible to the naked eye

4. Metallurgical Analysis

Examining the microstructure and composition of the casting provides insights into its properties:

• Optical microscopy and scanning electron microscopy (SEM) reveal grain structure and identify any metallurgical anomalies
• Spectrographic analysis confirms the chemical composition of the alloy
• Hardness testing verifies the material's mechanical properties

5. Pressure Testing

For parts that must maintain pressure integrity:

• Hydrostatic testing uses water or oil to check for leaks under pressure
• Pneumatic testing employs compressed air or gas to detect even minor leaks

6. Functional Testing

Simulating real-world conditions ensures parts will perform as intended:

• Cyclic loading tests evaluate fatigue resistance
• Thermal cycling assesses performance under varying temperature conditions
• Vibration testing identifies potential weaknesses or resonance issues

7. Statistical Process Control (SPC)

Implementing SPC helps maintain consistent quality over time:

• Key process parameters and quality metrics are continuously monitored and analyzed
• Control charts help identify trends or shifts in the process that may affect part quality
• This proactive approach allows for early intervention and process optimization

By employing a combination of these quality inspection methods, manufacturers can ensure that low pressure aluminum alloy castings meet or exceed customer specifications and industry standards. This comprehensive approach to quality control is essential for maintaining the reputation and competitiveness of companies in the die casting industry.

Case Study: Automotive Part Manufactured by Rongbao Using Low Pressure Die Casting

To illustrate the practical application of low pressure aluminum alloy casting, let's examine a real-world case study from Rongbao Enterprise, a leading manufacturer in the automotive industry. This case study showcases how Rongbao leveraged the advantages of low pressure die casting to produce a critical automotive component with exceptional quality and efficiency.

Project Overview

Rongbao was tasked with manufacturing an aluminum alloy engine cylinder head for a major automotive OEM. The part required:

• Complex internal cooling channels and oil passages
• Tight dimensional tolerances
• Excellent surface finish
• High strength and durability to withstand the harsh operating conditions of a modern engine

Material Selection

After careful consideration, Rongbao's engineering team selected an A356 aluminum alloy for its:

• Excellent castability and fluidity
• Good mechanical properties, including high strength-to-weight ratio
• Thermal conductivity suitable for engine applications
• Compatibility with heat treatment for further property enhancement

Process Development

Rongbao's process engineers optimized the low pressure die casting parameters to achieve the desired results:

• Mold design incorporated advanced simulation software to ensure optimal metal flow and solidification
• Precise temperature control was implemented throughout the casting process
• A customized pressure profile was developed to minimize porosity and ensure complete mold filling
• Specialized cooling channels in the mold promoted directional solidification

Quality Control Measures

To meet the stringent quality requirements, Rongbao implemented a comprehensive inspection protocol:

• 100% visual and dimensional inspection of all parts
• X-ray and CT scanning to verify internal integrity and detect any porosity
• Metallurgical analysis on sample parts to confirm microstructure and mechanical properties
• Pressure testing to ensure the integrity of all fluid passages
• Coordinate measuring machine (CMM) verification of critical dimensions

Results and Benefits

The implementation of low pressure aluminum alloy casting for this automotive part yielded significant benefits:

• Consistently high-quality castings with minimal defects and excellent surface finish
• Reduced scrap rate compared to traditional high-pressure die casting methods
• Improved mechanical properties, resulting in better performance and longer service life
• Ability to cast thinner walls and more complex geometries, contributing to overall weight reduction
• Increased production efficiency due to the semi-automated nature of the low pressure process

Customer Satisfaction

The automotive OEM was highly satisfied with the results, noting:

• Consistently high quality of the cylinder heads
• Improved engine performance due to the optimized design and casting quality
• Cost savings from reduced machining requirements and improved yield
• On-time delivery and Rongbao's ability to scale production to meet demand

This case study demonstrates how Rongbao Enterprise successfully leveraged the advantages of low pressure aluminum alloy casting to meet the challenging requirements of the automotive industry. By combining advanced process control, rigorous quality inspection, and material expertise, Rongbao was able to deliver a superior product that exceeded customer expectations.

Conclusion

Low pressure aluminum alloy casting has proven to be an invaluable manufacturing process for producing high-quality, complex parts across various industries. As demonstrated in this article, the step-by-step process, coupled with rigorous quality inspection methods, enables manufacturers like Rongbao Enterprise to consistently deliver superior products that meet the exacting standards of industries such as automotive and aerospace.

The case study presented highlights the practical benefits of this technology, showcasing how it can be applied to solve real-world manufacturing challenges. As the demand for lightweight, high-performance components continues to grow, low pressure die casting is likely to play an increasingly important role in the future of manufacturing.

For more information on how Rongbao Enterprise can support your aluminum alloy casting needs, please contact us at selinazhou@xianrongbao.com or steve.zhou@263.net. Our team of experts is ready to help you leverage this advanced manufacturing technique for your next project.

References

1. Campbell, J. (2015). Complete Casting Handbook: Metal Casting Processes, Metallurgy, Techniques and Design. Butterworth-Heinemann.
2. ASM International. (2008). ASM Handbook, Volume 15: Casting. ASM International.
3. Kaufman, J. G., & Rooy, E. L. (2004). Aluminum Alloy Castings: Properties, Processes, and Applications. ASM International.
4. Zolotorevsky, V. S., Belov, N. A., & Glazoff, M. V. (2007). Casting Aluminum Alloys. Elsevier Science.
5. American Foundry Society. (2015). Aluminum Casting Technology, 3rd Edition. American Foundry Society.
