How does low pressure casting work?

In the realm of metal casting, Rongbao.com/low-pressure-casting/prototype-aluminum-casting">low pressure aluminum alloy casting has emerged as a pivotal technique, revolutionizing the production of high-quality, complex components for various industries. This advanced casting method combines precision engineering with cutting-edge technology to create parts that meet the exacting standards of aerospace, automotive, and medical equipment manufacturers. In this comprehensive guide, we'll delve into the intricate science behind low pressure die casting, explore the nuances of mold design and filling control, and examine how process parameters influence the final product.

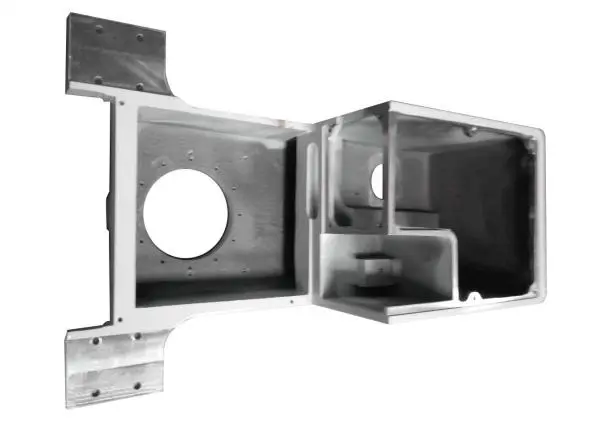

Science behind Low Pressure Die Casting

Low pressure aluminum alloy casting is a sophisticated process that relies on fundamental principles of physics and materials science. At its core, this method utilizes controlled pressure to fill a mold cavity with molten aluminum, resulting in castings with superior mechanical properties and minimal porosity.

The process begins with molten aluminum being held in a pressurized furnace, typically situated below the die. As the pressure in the furnace increases, it forces the molten metal upward through a feed tube and into the die cavity. This upward flow, contrary to gravity, allows for a more controlled and less turbulent fill compared to traditional gravity casting methods.

One of the key scientific principles at play in low pressure die casting is Bernoulli's principle. This fundamental law of fluid dynamics states that an increase in the speed of a fluid occurs simultaneously with a decrease in pressure or a decrease in the fluid's potential energy. In the context of low pressure casting, this principle helps explain how the controlled application of pressure can result in a smooth, laminar flow of molten aluminum into the mold cavity.

Another critical scientific aspect of low pressure aluminum alloy casting is the solidification process. As the molten metal fills the die, it begins to cool and solidify. The rate and pattern of solidification significantly influence the microstructure and, consequently, the mechanical properties of the final casting. Factors such as thermal gradients, cooling rates, and alloy composition play crucial roles in determining the solidification behavior and the resulting grain structure.

Advanced computer simulations and thermal analysis techniques are often employed to optimize the solidification process. These tools allow engineers to predict and control the formation of dendrites, grain boundaries, and potential defects, ensuring the production of high-quality castings with consistent properties.

Mold Design and Filling Control in Low Pressure Casting

The success of low pressure aluminum alloy casting heavily depends on the intricacies of mold design and the precise control of the filling process. These elements work in tandem to produce castings that meet stringent quality standards while maximizing efficiency and minimizing defects.

Mold design in low pressure casting is a complex endeavor that requires a deep understanding of fluid dynamics, heat transfer, and material properties. The goal is to create a die that facilitates optimal metal flow, promotes directional solidification, and allows for easy part removal. Key considerations in mold design include:

• Gating System: The design of runners and gates that guide the molten metal into the cavity must be carefully optimized to ensure smooth, laminar flow and minimize turbulence.
• Venting: Proper venting is crucial to allow trapped gases to escape, preventing defects such as air pockets or porosity.
• Thermal Management: The incorporation of cooling channels and strategic use of insulation help control solidification rates and thermal gradients within the mold.
• Parting Line and Draft Angles: These design elements facilitate easy removal of the solidified part from the mold.

Filling control in low pressure casting is achieved through precise manipulation of pressure and timing. Unlike gravity casting, where metal flow is primarily driven by gravity, low pressure casting allows for fine-tuned control over the rate at which molten aluminum enters the mold cavity. This control is typically achieved through programmable pressure curves that dictate how the pressure in the furnace changes over time.

Advanced filling control systems may incorporate real-time feedback mechanisms, such as sensors that monitor mold cavity pressure or metal flow rates. This data can be used to make dynamic adjustments to the pressure curve, ensuring optimal filling even in the face of variations in metal temperature or viscosity.

The combination of sophisticated mold design and precise filling control allows manufacturers to produce complex, thin-walled components with excellent surface finish and minimal defects. This level of control is particularly valuable in industries like aerospace and medical equipment manufacturing, where part integrity and consistency are paramount.

Pressure Curves and Timing: How Process Parameters Affect the Outcome

In low pressure aluminum alloy casting, the manipulation of process parameters, particularly pressure curves and timing, plays a crucial role in determining the quality and characteristics of the final product. These parameters influence everything from the microstructure of the casting to its surface finish and dimensional accuracy.

Pressure curves in low pressure casting describe how the pressure applied to the molten metal changes over time during the filling and solidification processes. A typical pressure curve might include several distinct phases:

1. Initial Pressure Rise: A rapid increase in pressure to initiate metal flow into the mold cavity.
2. Controlled Fill: A more gradual pressure increase to maintain a steady, controlled flow of metal.
3. Pressure Hold: Maintaining pressure during solidification to compensate for shrinkage and ensure complete mold filling.
4. Pressure Release: A gradual or rapid decrease in pressure as the casting solidifies completely.

The shape and timing of these pressure curves can have profound effects on the casting outcome. For example:

• A rapid initial pressure rise can lead to turbulent flow, potentially causing oxide inclusions or air entrapment.
• A slow, controlled fill can promote laminar flow, reducing defects and improving surface finish.
• Maintaining pressure during solidification can help minimize porosity and improve the overall density of the casting.

Timing is equally critical in low pressure aluminum alloy casting. The duration of each phase in the pressure curve, as well as the overall cycle time, must be carefully optimized for each specific part and alloy. Factors that influence timing decisions include:

• Part Geometry: Complex shapes may require longer fill times to ensure complete mold filling.
• Alloy Properties: Different aluminum alloys have varying fluidity and solidification characteristics that affect optimal timing.
• Mold Temperature: The initial temperature of the mold influences how quickly the metal solidifies, impacting cycle times.
• Desired Microstructure: The cooling rate, influenced by timing and pressure, affects grain structure and mechanical properties.

Advanced low pressure casting systems often employ sophisticated control algorithms that can dynamically adjust pressure curves and timing based on real-time data. This adaptive approach allows for consistent high-quality castings even when faced with variations in environmental conditions or slight differences in alloy composition.

By fine-tuning these process parameters, manufacturers can achieve remarkable control over the casting process, producing parts with exceptional consistency, minimal defects, and tailored mechanical properties. This level of control is particularly valuable in industries like automotive and aerospace, where performance and reliability are critical.

Conclusion

Low pressure aluminum alloy casting represents a pinnacle of modern manufacturing technology, combining scientific principles with advanced engineering to produce high-quality components for demanding applications. By understanding and controlling the intricate interplay of mold design, filling dynamics, pressure curves, and timing, manufacturers can achieve unprecedented levels of precision and consistency in their casting processes.

As industries continue to demand lighter, stronger, and more complex components, the role of low pressure casting in meeting these challenges will only grow. Ongoing research and development in areas such as computer simulation, real-time process control, and advanced alloy development promise to further enhance the capabilities of this versatile manufacturing technique.

For more information on how low pressure casting can benefit your manufacturing processes, please contact our team of experts at selinazhou@xianrongbao.com or steve.zhou@263.net. Our experienced professionals are ready to help you optimize your production processes and achieve superior results in your casting applications.

References

1. Campbell, J. (2015). Complete Casting Handbook: Metal Casting Processes, Metallurgy, Techniques and Design. Butterworth-Heinemann.
2. ASM International. (2008). ASM Handbook, Volume 15: Casting. ASM International.
3. Kaufman, J. G., & Rooy, E. L. (2004). Aluminum Alloy Castings: Properties, Processes, and Applications. ASM International.
4. Jorstad, J., & Rasmussen, W. M. (2006). Aluminum Casting Technology. American Foundry Society.
5. Brown, J. R. (1999). Foseco Non-Ferrous Foundryman's Handbook. Butterworth-Heinemann.
