How does a disc coupling work?
Rongbao.com/gravity-casting/cast-coupling-disc">Disc couplings play a crucial role in power transmission systems across various industries, including automotive, aerospace, medical equipment manufacturing, and electrical/electronic applications. These precision components enable the efficient transfer of torque between shafts while compensating for misalignment.
Torque Transmission Mechanism
At the heart of a disc coupling's functionality is its ability to transmit torque effectively between connected shafts. The primary components involved in this process include:
- Flexible discs
- Hub assemblies
- Spacer
- Bolts and hardware
The flexible discs, typically made from high-strength stainless steel, are the key elements responsible for torque transmission. These thin, precisely engineered discs are arranged in a pack configuration and connected to the hubs on either end of the coupling. As torque is applied to one shaft, it is transferred through the hub to the disc pack, which then transmits the rotational force to the opposing hub and connected shaft.
Its unique design allows for efficient torque transmission while also providing flexibility to accommodate shaft misalignment and axial movement. This is achieved through the carefully calculated geometry of the disc pack, which allows for controlled flexing of the discs during operation.
One of the advantages is their ability to handle high torque loads with minimal backlash. This is particularly important in applications requiring precise motion control or where sudden load changes may occur. The multiple disc configuration distributes the load evenly, reducing stress on individual components and enhancing overall system reliability.

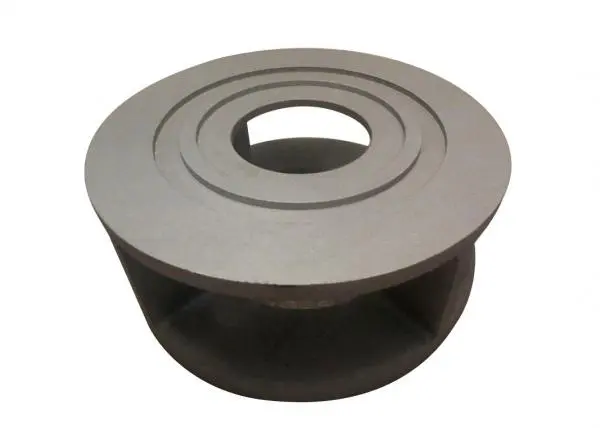

It's worth noting that the quality of materials and manufacturing processes used in producing disc couplings can significantly impact their performance. At Rongbao Enterprise, we utilize advanced gravity casting techniques to produce our cast coupling discs, ensuring optimal strength and durability. This process allows us to achieve tight tolerances (CT8) and adhere to international standards such as ASTM, AISI, DIN, BS, and JIS.
Misalignment Compensation Capabilities
One of the most significant advantages of disc couplings is their ability to compensate for various types of misalignment between connected shafts. This feature is crucial in many industrial applications where perfect alignment is difficult to achieve or maintain over time. They can typically handle three types of misalignment:
- Angular misalignment
- Parallel misalignment
- Axial displacement
Angular misalignment occurs when the centerlines of the connected shafts are not perfectly parallel. Disc couplings can accommodate this type of misalignment through the controlled flexing of the disc pack. As the shafts rotate, the discs deform slightly to maintain the connection between the hubs while allowing for the angular difference.
Parallel misalignment, also known as radial misalignment, happens when the shaft centerlines are parallel but offset from each other. Disc couplings handle this type of misalignment through a combination of disc flexing and slight movement of the spacer between the two disc packs.
Axial displacement refers to changes in the distance between shaft ends, which can occur due to thermal expansion or mechanical settling. Disc couplings can accommodate this movement through the inherent flexibility of the disc pack design, allowing for slight stretching or compression of the assembly.
The ability to compensate for these types of misalignment is critical for several reasons:
- Reduced wear on bearings and other components
- Minimized vibration and noise
- Extended equipment life
- Improved overall system efficiency
High-Precision and Stability Features
Disc couplings are renowned for their high-precision operation and stability, making them ideal for applications where accurate power transmission is critical. Several design features contribute to these performance characteristics:
1. Zero Backlash: Unlike some other coupling types, properly designed and installed disc couplings exhibit zero backlash. This means there is no play or lost motion between the input and output shafts, ensuring precise motion control and positioning accuracy.
2. Torsional Stiffness: The disc pack configuration provides excellent torsional stiffness, allowing for responsive and accurate torque transmission. This is particularly important in servo-driven systems or applications with frequent start-stop cycles.
3. Balance Stability: High-quality disc couplings, such as those produced by Rongbao Enterprise, are dynamically balanced to minimize vibration at high speeds. This contributes to smoother operation and reduced wear on connected equipment.
4. Consistent Performance: The all-metal construction of disc couplings ensures consistent performance across a wide range of operating temperatures and environments. Unlike couplings with elastomeric components, disc couplings maintain their characteristics without degradation over time.
5. Low Inertia: Many disc coupling designs feature low inertia, which is beneficial for applications requiring rapid acceleration or deceleration. This characteristic helps improve system responsiveness and energy efficiency.
6. Maintenance-Free Operation: When properly specified and installed, disc couplings typically require no lubrication or routine maintenance. This leads to reduced downtime and lower overall operating costs.
At Rongbao Enterprise, we leverage advanced gravity casting techniques to produce cast coupling discs that meet or exceed industry standards for precision and stability. Our manufacturing process allows for tight tolerances and consistent quality, ensuring that each coupling performs reliably in demanding applications.
Conclusion
Disc couplings are sophisticated components that play a vital role in modern power transmission systems. Their unique design allows for efficient torque transmission, excellent misalignment compensation, and high-precision operation. By understanding the mechanics behind disc couplings, engineers and procurement specialists can make informed decisions when selecting power transmission components for their applications.
The benefits of disc couplings, including zero backlash, torsional stiffness, and consistent performance, make them ideal for a wide range of industries where precision and reliability are paramount. As technology continues to advance, we can expect to see further refinements in disc coupling design and materials, leading to even better performance and efficiency.
For those seeking high-quality disc couplings tailored to specific application needs, Rongbao Enterprise offers expert consultation and custom manufacturing solutions. Our cast coupling discs, produced through advanced gravity casting techniques, provide the perfect balance of strength, precision, and reliability.
To learn more about our disc coupling solutions or to discuss your specific requirements, please contact our team at selinazhou@xianrongbao.com or steve.zhou@263.net. Our engineers are ready to assist you in finding the optimal coupling solution for your power transmission needs.
