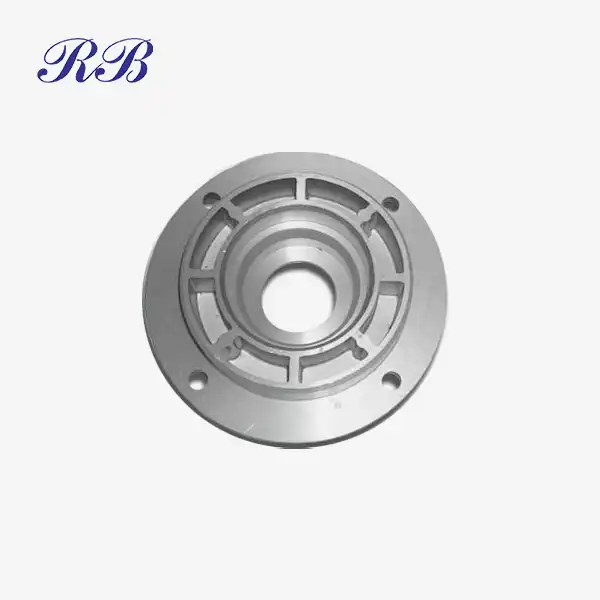

Gravity Sand Casting Parts Process

In the world of manufacturing, gravity sand casting stands as a cornerstone technique for producing high-quality metal parts. This process, beloved by industries ranging from automotive to aerospace, offers a perfect blend of versatility, cost-effectiveness, and precision. In this comprehensive guide, we'll delve into the intricacies of gravity sand casting parts, exploring the process overview, core steps, and crucial parameters that ensure top-notch quality.

Process Overview

Gravity sand casting is a metal casting process that has been refined over centuries, combining traditional craftsmanship with modern engineering principles. At its core, this method involves pouring molten metal into a sand mold under the influence of gravity. The process begins with creating a mold using sand mixed with bonding agents, which is shaped around a pattern of the desired part. Once the mold is prepared, molten metal is carefully poured into it, filling the cavity and taking on the shape of the pattern.

What sets gravity sand casting apart is its ability to produce complex geometries with excellent surface finishes. This makes it an ideal choice for manufacturing a wide range of parts, from engine blocks in the automotive industry to intricate components in medical equipment. The process is particularly favored for its flexibility in producing both small and large parts, as well as its cost-effectiveness for low to medium production runs.

One of the key advantages of gravity sand casting is its environmental friendliness. The sand used in the molds can be recycled multiple times, reducing waste and resource consumption. This aligns well with the growing emphasis on sustainable manufacturing practices across industries.

Core Process Steps: From Mold Creation to Final Product

The gravity sand casting process can be broken down into several critical steps, each playing a vital role in the production of high-quality parts:

1. Pattern Making: The process begins with creating a pattern, typically made of wood, metal, or plastic, that mirrors the shape of the final part. This pattern includes allowances for shrinkage and machining.
2. Mold Preparation: Sand is mixed with bonding agents and compacted around the pattern to create the mold. This step requires precision to ensure the mold cavity accurately reflects the desired part geometry.
3. Core Setting: For parts with internal cavities, cores made of sand are placed within the mold. These cores create the hollow sections of the casting.
4. Melting and Pouring: The chosen metal is melted in a furnace and heated to the appropriate temperature. The molten metal is then carefully poured into the mold, filling all cavities.
5. Solidification and Cooling: The filled mold is left to cool, allowing the metal to solidify. This stage is crucial for the formation of the part's microstructure and properties.
6. Shakeout: Once cooled, the casting is removed from the sand mold. This process, known as shakeout, involves breaking away the sand mold to reveal the cast part.
7. Cleaning and Finishing: The cast part undergoes cleaning to remove any remaining sand or excess material. Additional finishing processes such as trimming, grinding, or heat treatment may be applied to achieve the final desired specifications.

Each of these steps requires careful control and expertise to ensure the production of high-quality gravity sand casting parts. The interplay between these stages determines the final characteristics of the part, including its dimensional accuracy, surface finish, and mechanical properties.

Key Process Parameters and Quality Control

The success of gravity sand casting parts hinges on the meticulous control of various parameters throughout the process. These parameters, when properly managed, ensure consistent quality and performance of the final products:

• Sand Composition and Preparation: The quality of the sand mixture, including its grain size, moisture content, and bonding agents, directly impacts the mold integrity and surface finish of the casting.
• Pouring Temperature: The temperature of the molten metal must be carefully controlled. Too high a temperature can lead to defects like gas porosity, while too low a temperature may result in incomplete filling of the mold.
• Pouring Rate: The speed at which the molten metal is poured into the mold affects the flow characteristics and the formation of defects. A balanced pouring rate ensures complete filling while minimizing turbulence.
• Cooling Rate: The rate at which the casting cools influences its microstructure and mechanical properties. Controlled cooling can be used to achieve specific material characteristics.
• Mold Design: Proper gating and risering systems in the mold design are crucial for ensuring complete filling and minimizing shrinkage defects.

Quality control in gravity sand casting involves a multi-faceted approach:

• Visual Inspection: Each casting undergoes visual examination to identify surface defects or irregularities.
• Dimensional Verification: Precise measurements are taken to ensure the part meets specified dimensional tolerances.
• Non-Destructive Testing: Techniques like X-ray inspection or ultrasonic testing may be employed to detect internal defects without damaging the part.
• Mechanical Testing: Sample parts may undergo strength, hardness, or other mechanical tests to verify material properties.
• Metallurgical Analysis: Examination of the metal's microstructure can provide insights into its properties and the effectiveness of the casting process.

By rigorously controlling these parameters and implementing comprehensive quality control measures, manufacturers can consistently produce gravity sand casting parts that meet or exceed industry standards and customer expectations.

Success in gravity sand casting hinges on mastering its nuanced variables: mold permeability, pouring temperature control, and gating system design. Modern manufacturers employ non-destructive testing (NDT) methods like X-ray radiography, ultrasonic testing, and dye penetrant inspection to ensure castings meet or exceed industry standards (e.g., ASTM, ISO 9001). By integrating lean manufacturing principles and statistical process control (SPC), they achieve consistent quality even for parts with tight tolerances (e.g., ±0.1% for critical aerospace components), proving that “traditional” does not equate to “compromised.”

Partnering for Success

At Rongbao Enterprise, we specialize in unlocking the full potential of gravity sand casting through decades of expertise, cutting-edge simulation tools, and a commitment to excellence. Our team of metallurgists, engineers, and casting specialists works closely with clients to optimize designs, select the right sand systems (green sand for cost efficiency, no-bake for intricate details), and ensure every casting meets the exacting demands of its end-use environment.

Contact Us Today

Ready to explore how gravity sand casting can elevate your project? Reach out to our team at selinazhou@xianrongbao.com or steve.zhou@263.net for a consultation. From material selection to post-casting machining and surface finishing, we’re dedicated to delivering solutions that blend technical precision with commercial viability—because your manufacturing success is our priority.
